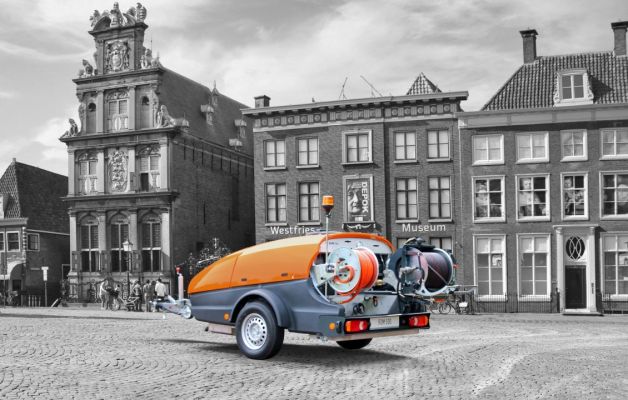

High pressure sewer cleaning trailer up to Ø 600 mm

Specifications

• The high pressure sewer cleaning trailer is ideal for unblocking and cleaning domestic connections and main sewer systems up to Ø 600 mm. Even oil spill removal and surface and drain cleaning is possible. In addition, the high pressure sewer cleaning trailer can be used for unblocking and cleaning rainwater drains (Ø 70 mm) and smaller pipes, facades, removal of light graffiti, etc. This sewer unblocking unit provides a cleaning pressure of up to 200 bar and a water flow rate of up to 60 l/min. Despite its light and compact design, the unit is equipped with a spacious 900-litre water tank.



  Characteristics

  • Fuel-efficient EU Stage V & EPA Tier 4 Kubota engine, meeting current and future emission requirements
  • Spacious 900-litre water tank and 30-litre fuel tank
  • Electric starting system
  • 270˚ swivelling, hydraulically operated high pressure hose reel (180˚+90˚) with folding hose entry guide and swinging along control panel
  • Min. level protection for the HD pump
  • Various fittings, such as infinitely adjustable pressure regulator, pressure gauge and water filter with automatic water stop and washable element
  • Spray gun holder, incl. spray gun with nozzle bar and flat jet nozzle
  • Two spacious tool boxes (one on both sides of the trailer, lockable by means of integrated locks)
  • Additional open storage box at the trailer rear
  • Noise reduction kit
  • Double-walled insulated stainless steel silencer
  • Flashlight 360º (LED) on tripod



  Can be used for

  • Unblocking and cleaning domestic connections and the main sewer system up to Ø 600 mm.
  • Unblocking and cleaning rainwater drains (Ø 70 mm) and smaller pipes
  • Facade/surface cleaning
  • Drain cleaning
  • Removal of light graffiti
  • Oil spill removal



  Technical specifications

  Brand	: ROM
  Model	: 900
  Water tank	: 900 litres
  Fuel tank	: 30 litres
  High pressure pump	: 60 l/min. at 200 bar
  Trailer type	: with brakes, incl. noise reduction kit
  Weight	: approx. 950 kg (max. 1,700 kg)
  Dimensions (lxwxh)	: 4,150 x 1,770 x 1,470 mm
  High pressure hose	: 80 m 1/2” (DN 13)
  Second HP hose reel	: 120 bar with 40 m hose for a spray gun
  20 m 3/4’’ filling hose (DN 20) in the hose box
  Remote control
