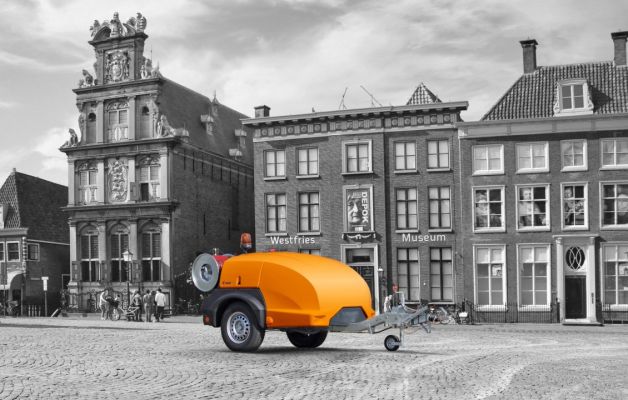

High pressure sewer cleaning trailer up to Ø 400 mm

Specifications

• The high pressure sewer cleaning trailer is ideal for unclogging and cleaning domestic connections and the main sewer system up to Ø 400 mm. It can also be used to unclog and clean rainwater drains up to Ø 70 mm, facades, surfaces, drains, remove graffiti, etc. This sewer unclogging unit has a cleaning pressure of up to 160 bar and a water flow rate of up to 60 l/min. Despite its light and compact design, the unit is equipped with a large 650-litre water tank.



  Characteristics

  • Efficient EU Stage V and EPA Tier 4 engine
  • Electronic start system
  • Electrically operated high pressure hose reel
  • iROM control system, incl. daylight display and waterproof key operation (IP65)
  • Equipped with nozzles
  • Various fittings, such as infinitely adjustable pressure regulator, pressure gauge and water filter with automatic water stop and washable element
  • Two spacious toolboxes with integrated holders for storing nozzles and pylons
  • Soundproofing kit
  • Double-walled insulated stainless steel silencer
  • Hot-dip galvanized chassis



  Can be used for

  • Unclogging and cleaning domestic connections and the main sewer system up to Ø 400 mm.
  • Unclogging and cleaning rainwater drains (Ø 70 mm) and smaller pipes
  • Facade/surface cleaning
  • Drain cleaning
  • Removal of minor graffiti



  Technical specifications

  Brand	: ROM
  Model	: SmartTrailer PRO
  Water tank	: 650 litres
  Fuel tank	: 30 litres
  High pressure pomp	: 60 l/min. at 160 bar
  Trailer type	: with brakes, incl. noise reduction kit
  Weight	: ca. 575 kg
  Dimensions (lxbxh)	: 3.700 x 1.440 x 1.380 mm
  High pressure hose	: 80 m 1/2” (DN 13)
  Filling hose reel	: manually operated, incl. 50 m 3/4’’ water hose (DN 20)
